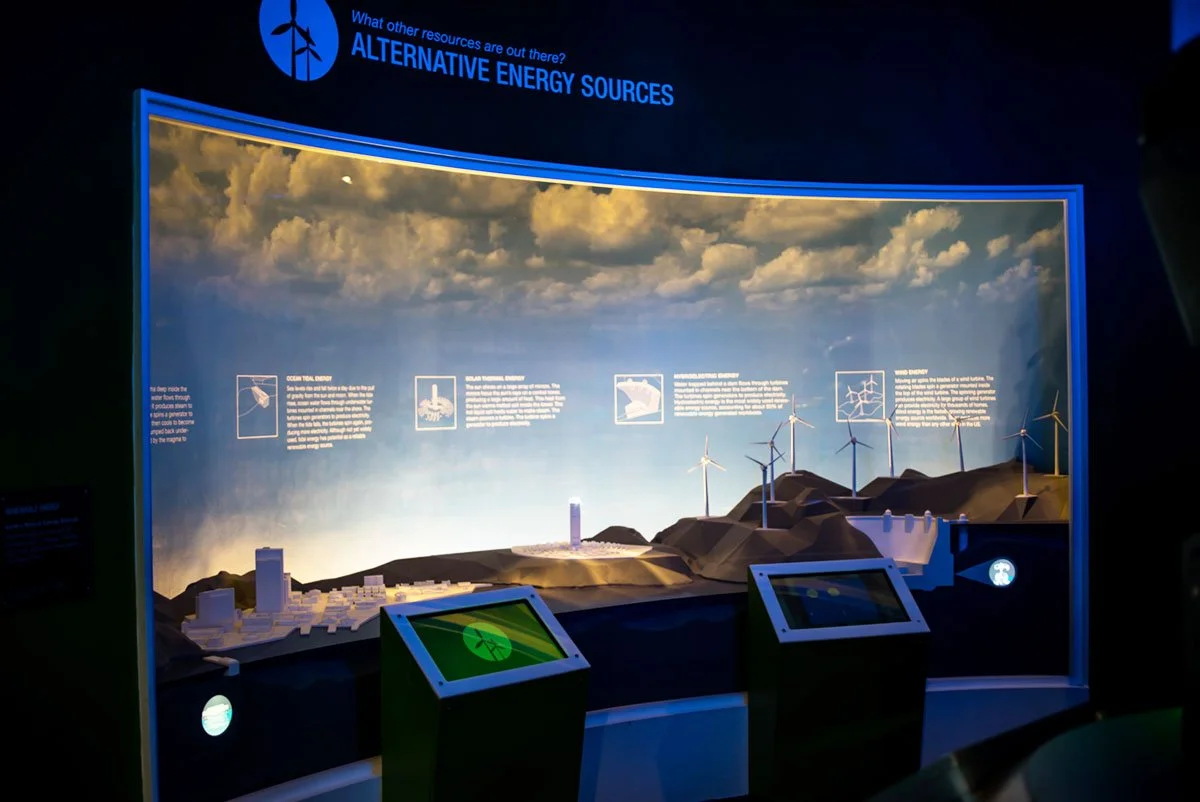

Finished exhibit during its projected content cycle

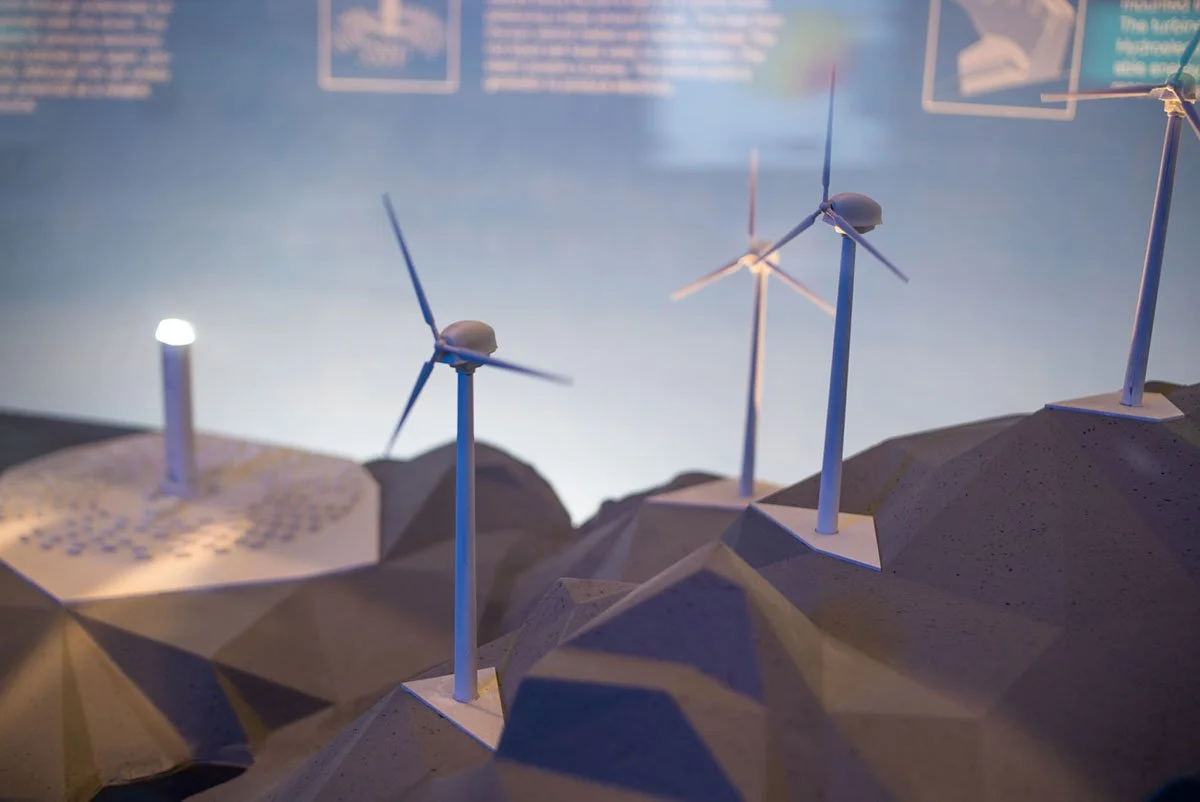

Windmills turn at a low rpm

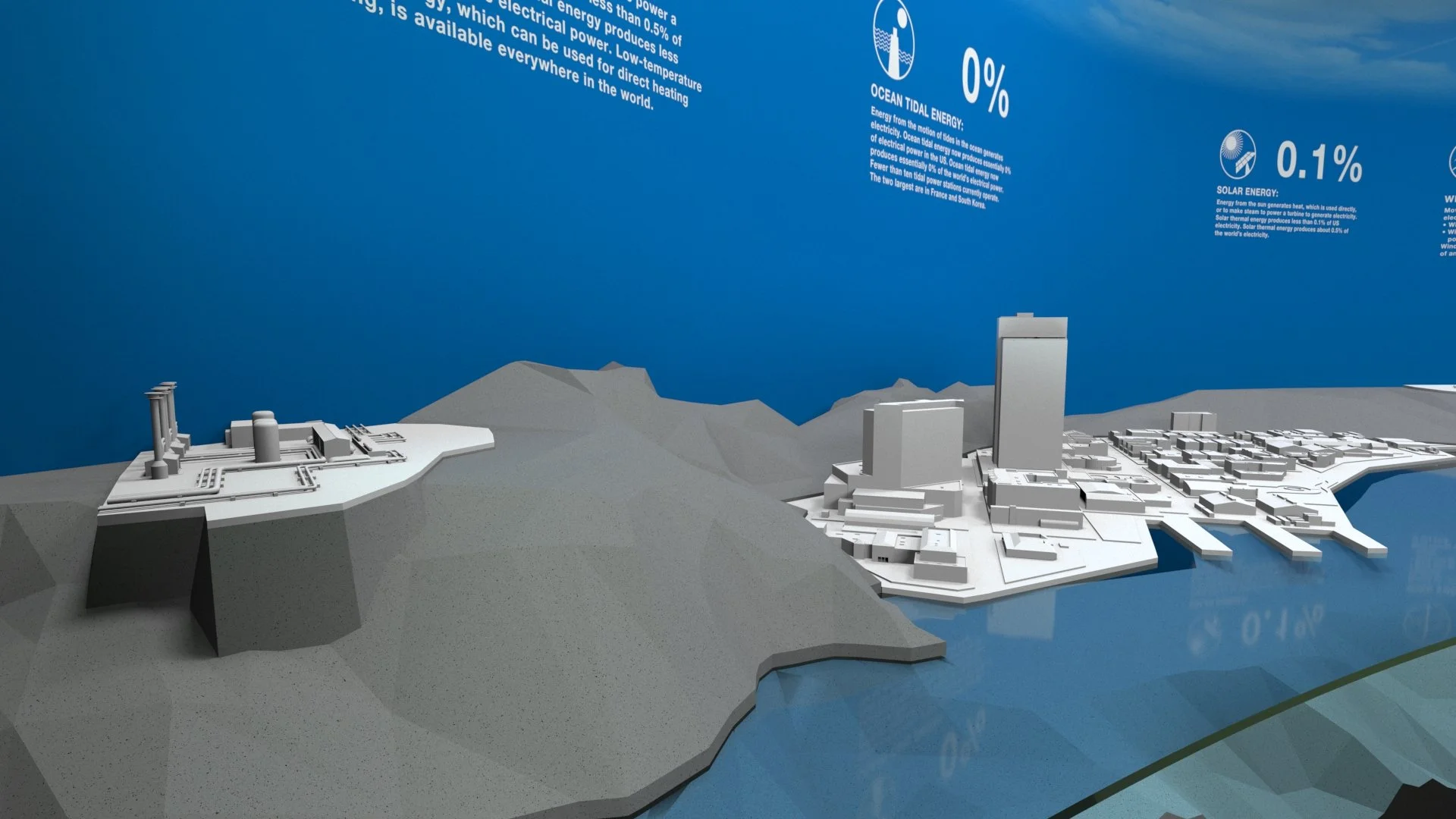

My 3D model

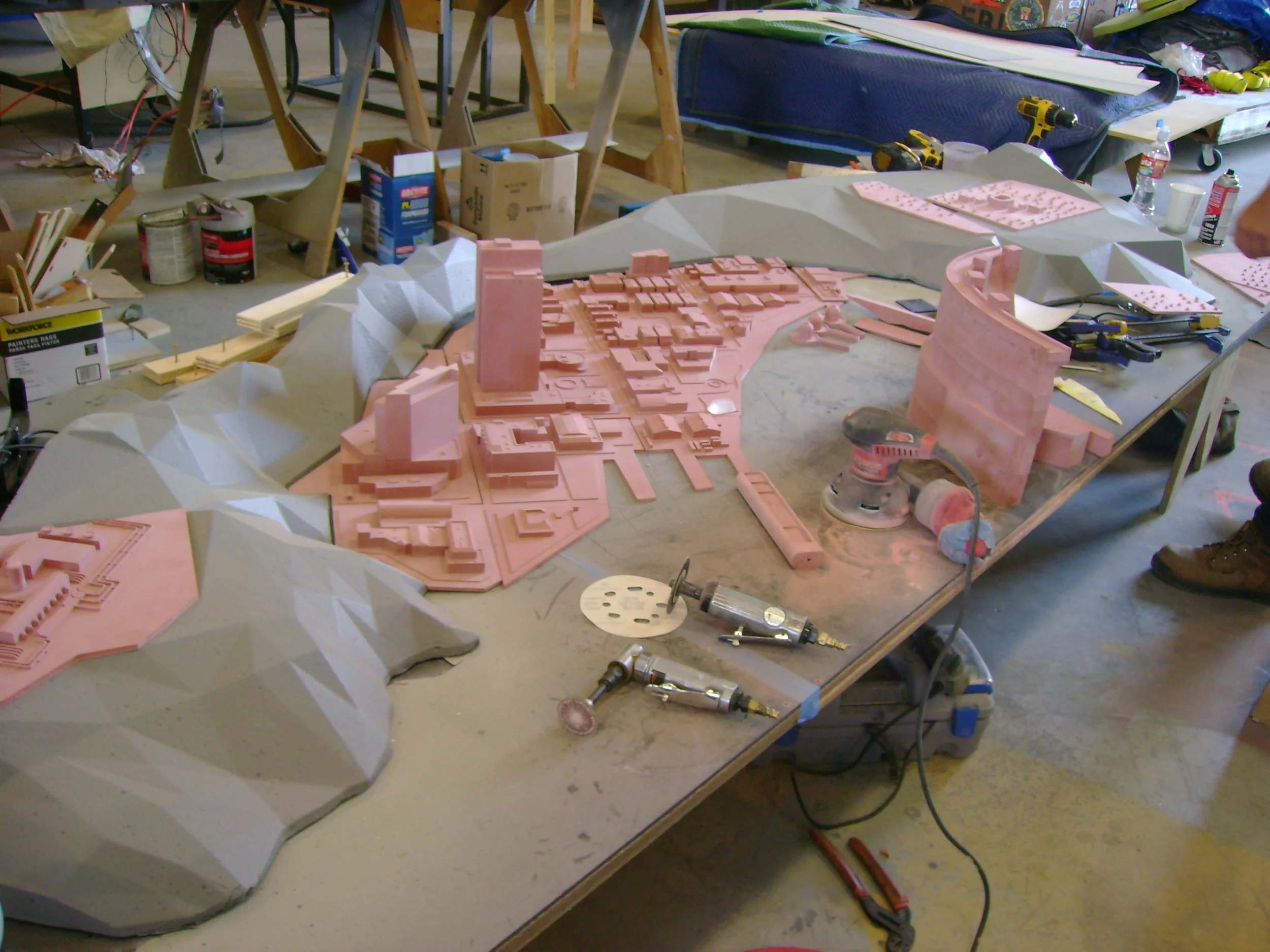

Assembly of the model

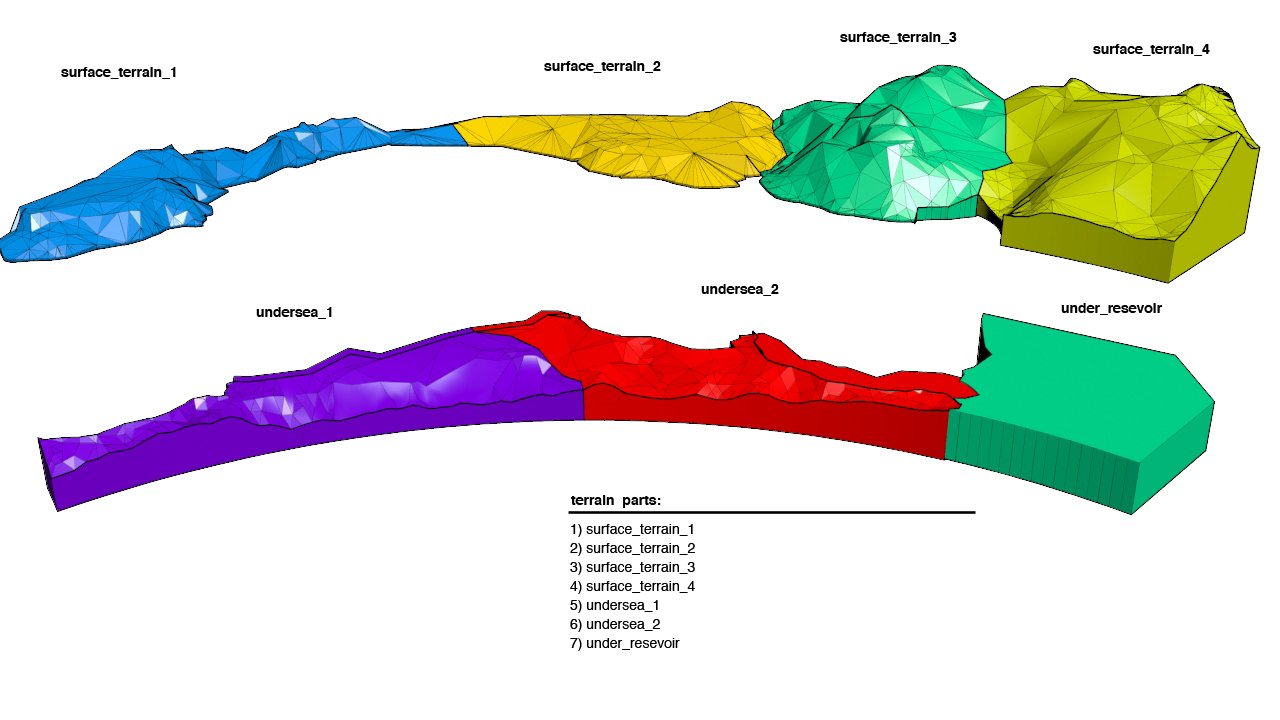

Working out the landscape model for above and below the water (blue acrylic). Each piece is cut from high density foam and painted.
Renewable Energy Diorama
Date: 2012
Design, 3D modeling, and rendering work for an alternative energy diorama in Dallas’ premiere science museum

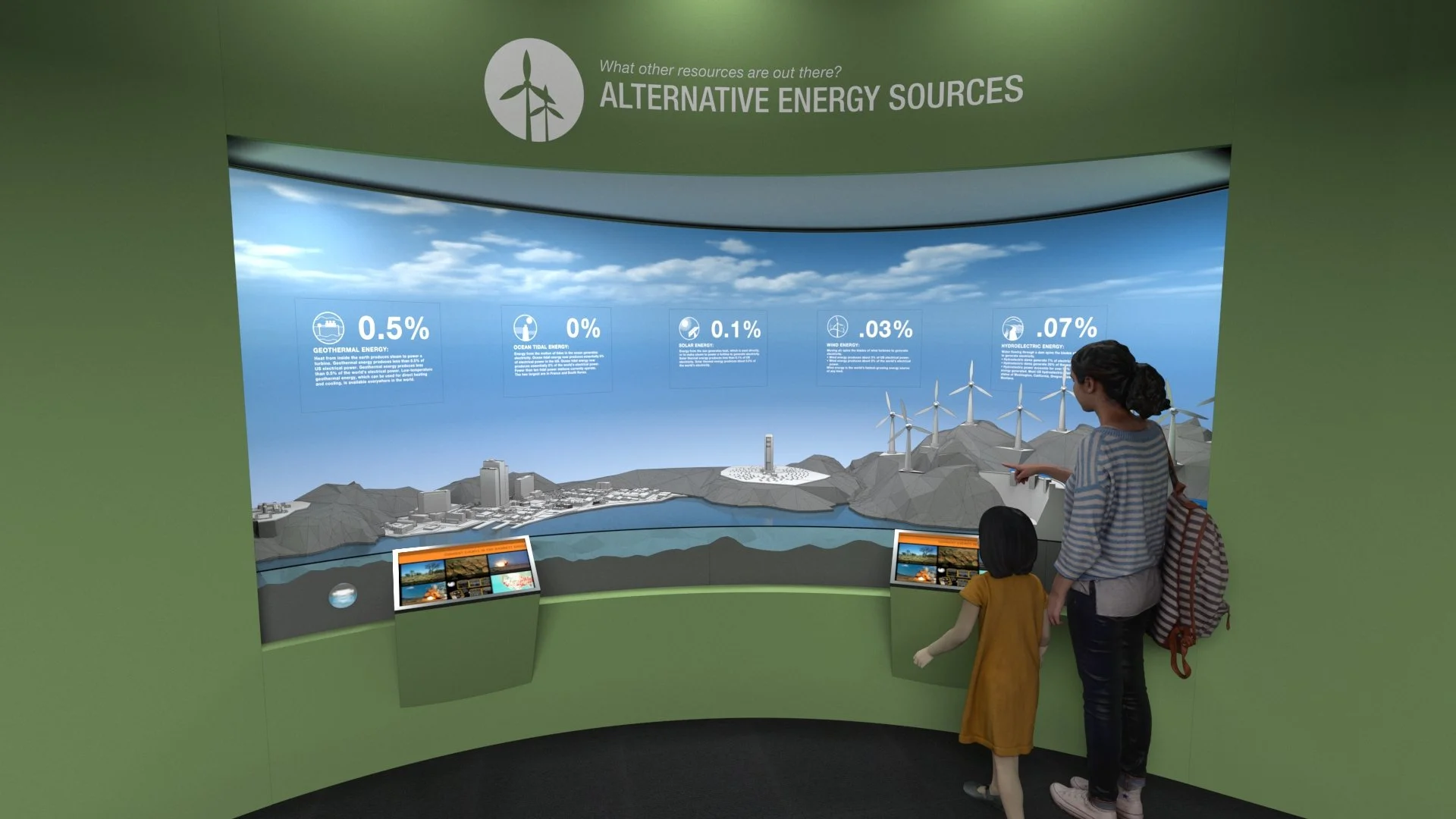

Interactive kiosks give energy information on various renewable energy sources. Projected content is displayed on back wall behind the landscape. Small videos play in peekaboo holes highlighting less visible features like ocean wave and ocean tidal energy sources.
After my design was approved, I prepared the landscape models and other surface features to be cut on our CNC.
PROJECT MANAGEMENT: PB Exhibits
CLIENT: Perot Museum of Nature & Science - Dallas, Texas
PROJECT: Tom Hunt Energy Hall
CONCEPT: Paul Bernhard / Troy Engel
DESIGN: Troy Engel
3D MODELING: Troy Engel
RENDERING: Troy Engel
